- Place of Origin: Shandong, China (Mainland)
- Brand Name: Unique
- Model Number: U-MC1520

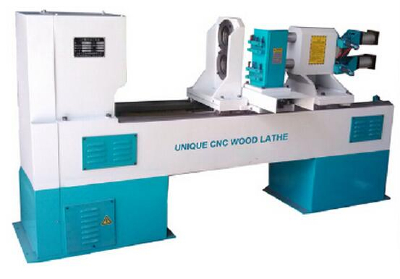

Advantages of the Unique CNC Wood lathe wih 2 cutters,
1). Maximum working length is 1500mm, Max.turning diameter is 200mm.
2).The machine has 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.
3).Linear square rails, ballscrews,some electronic components are imported, high precision and durable.
4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.
6). Strong 5.5KW spindle.
Main parameters of the machines,
No. | ITEM | PARAMETER | ||
1 | Model | U-MC1520 | U-MC2020 | U-MC2520 |
2 | Processing length | 100-1500mm | 100-2000mm | 100-2500mm |
3 | Machine dimension | 3.0x1.5x1.4m | 3.5x1.5x1.4m | 4x1.5x1.4m |
4 | Package dimension | 3.1x1.6x1.6m | 3.5x1.6x1.6m | 4.1x1.6x1.6m |
5 | Gross weight | 1700kgs | 2000kgs | 2300kgs |
6 | Max. turning diameter | 300mm | ||
7 | Max.side length of wood logs can be processed | 200mm | ||
8 | Quantity of spindle | 1 | ||
9 | Quantity of knife | 2 | ||
10 | Max.feeding speed | 40mm/s | ||
11 | Processing accuracy | 0.00125mm | ||
12 | Spindle motor power | 5.5KW | ||
13 | Voltage | 380V/50Hz/3Phase (Or 220V/50Hz/Single/3 Phase) | ||
14 | Compatible software | autoCAD,type3,artcam,etc. |
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Unique
- Model Number: U-MC1520
