2d 3d cnc wood router for sale with competitive quality and price

2d 3d cnc wood router for sale with competitive quality and price

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1500 Sets per Year
  • Port: Any port in China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-01-15
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China (Mainland)
  • Brand Name:  Unique
  • Model Number:  U-R1325

Specifications

1). 4x8ft working size
2). Vacuum suction table
3). Support various CAD/CAM softwares
4). 2 years warranty
5).CE

Looking for distributors all over the world. We supply OEM service. Give us a chance, let us win-win.



Product Description

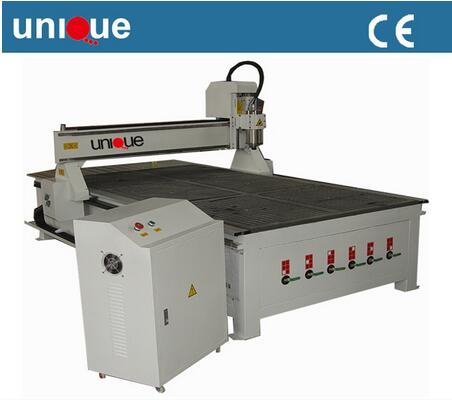

U-R1325 woodworking CNC Router

Model

U-R1325

Working Zone: (X Y Z)

1300×2500×200mm (Others are optional)

Table Size (W×L)

1700×2700mm

Resolution

<0.003mm

Cutting Accuracy

± 0.02/300mm

Repositioning Accuracy

±0.01mm

Axis drive System (X Y Z)

X & Y:Taiwan Two module Rack and pinion

Z: ballscrews

Drive Type

YAKO driving system

Spindle

3KW/4.5KW/5.5KW/6KW/7KW/9KW water cooling (air cooling is optional)

Spindle speed

0-24000rpm

Max. Working speed

28,000mm/min

Collets Type

3.175mm/ 4mm/ 6mm/12mm

Command Code

G*.u00*.mmg*nc.,HPGL

Compatible

Type 3/Artcam/Mastcam/Ucancam,etc.

Control System

DSP control by handle (mach 3 or ncstudio systmes are optional)

Interface

USB

Voltage

AC220V±10%/50~60Hzm(380V option)

Table structure

Aluminum T-slot table or Vacuum table

Weight

1500kg±10%

Warranty

24 Months (spindle: 6  months)

U-R1325 CNC Router main features

1) Strong stucture: thick steel pipe,heavy-duty, support big and heavy materials,won't be deformed.

2). High precision components,

  •  Taiwan made two module rack and pinion transmission

  •  Taiwan thick square linear rails and blocks for high stability and precision

  •  Germany ballscrews for Z axis.

  •  Omron switch, from Japan.

  •  Leadshine or Yako driver, they are all topest quality in China. (Japan drivers are optional)

  • Fuling inverter, most popular and durable

3). Table structure

Our Standard model comes with Aluminium T-Slot, but when you order with a vacuum hold-down pump, you can have a PVC Vacuum Table installed instead.

4). Advanced control system:NC studio control by computer, DSP control by handle or Mach 3

     The systems are compatible with most CAD/CAM softwares,such as Type3 / Artcam / Castmate/    Mastercam / Artcut /etc.

5). Free type3,artcam, Ucancam softwares will come with machine.

Application:

a.  Industry: widely used in area of advertising, stamps, badges, sign making, award, ornament ,craft ,breast card , construction model, mould, metal carving, product label, instrument panel, carpentry product etc.

b.  Materials: wood, acrylic cutting, Plexiglas, PVC board, lumber, artificial marble, copper, aluminum, plastic and other material.
